Characteristics
|
| LMG |
 |
| XYZ |
Model variations
| 5600 |
 |
| Category | Item | Specification |
| Workpiece | Workpiece diameter[mm] | 700 |
| Workpiece length[mm] | 500 |
| Travels | Stroke X[mm] | 1050 |
| Stroke Y[mm] | 560 |
| Stroke Z[mm] | 460 |
| Stroke A[deg] | 130(-110~20) |
| Stroke C[deg] | 360 |
| Rapid traverse(X)[m/min] | 40 |
| Rapid traverse(Y)[m/min] | 40 |
| Rapid traverse(Z)[m/min] | 32 |
| Rapid traverse(A)[r/min] | 40 |
| Rapid traverse(C)[r/min] | 50 |
| Table | Workpiece allowable Load[kg] | 400 |
| Table Size[mm] | Ø500 |
| Category | CNC brand | OSP |
| CNC system | OSP-P300MA-H
|
| Origin | Japan |
Milling spindle 1(H1)
| Spindle name | H1-1 | | | | | | | Taper | 7:24 taper No. 40 | | | | | | | Rotational speed[rpm] | 15000 | 15000 | | | | | | Power[kW] | 18.5(Cont)!22(10min) | | | | | | | Torque[Nm] | | | | | | | | Transmission | | | | | | | |
Tool Magazine 1
| Tool holder taper | 7:24 taper No. 40
| | | | | | | No. of tool storage[ea] | 60
| | | | | | | Tool diameter[mm] | 90(A)!125(B)
| | | | | | | Tool length[mm] | 300
| | | | | | | Tool weight[kg] | 8
| | | | | | | Tool change time(TTT)[s] | | | | | | | | Tool change time(CTC)[s] | | | | | | | |
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)
Guide way
| Axis | X | Y | Z |
| Guide way | LMG | LMG | LMG |
| Qty | 2 | 2 | 2 |

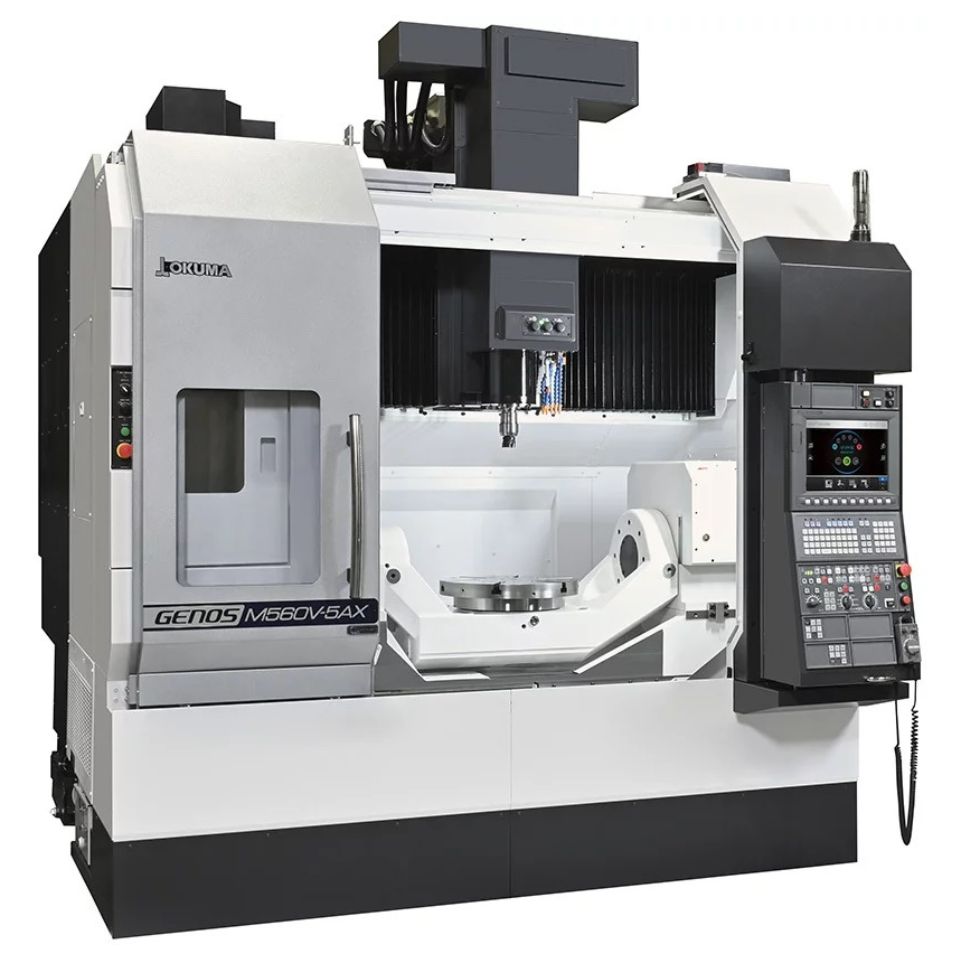

Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
